A helium mass spectrometer leak detector is a specialized instrument used to detect and locate leaks in various systems or components. It operates based on the principle that helium, being a small and light gas, can easily penetrate even the smallest leaks.
Here’s how a helium mass spectrometer leak detector typically works:

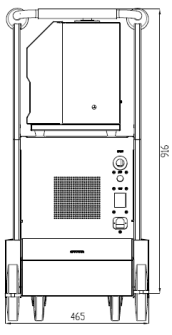

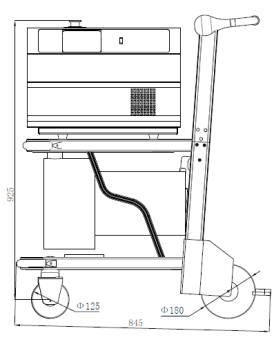

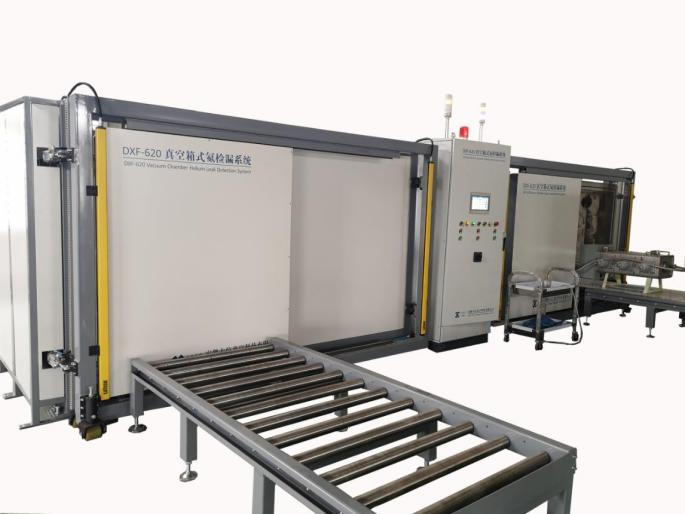

Vacuum Chamber: The system to be tested is placed inside a vacuum chamber, which is then evacuated to create a low-pressure environment.
Helium Inlet: Helium gas is introduced into the chamber through a probe or nozzle. The helium gas acts as a tracer gas.
Leak Detection: If there is a leak in the system, helium gas will escape through the leak and enter the vacuum chamber.
Ionization: Inside the vacuum chamber, the helium gas is bombarded with high-energy electrons, causing it to ionize and form helium ions.
Mass Spectrometry: The helium ions are accelerated and passed through a magnetic field, which separates them based on their mass-to-charge ratio. The detector measures the ions’ mass and generates a signal.
Leak Indication: If helium ions are detected by the mass spectrometer, it indicates the presence of a leak. The signal generated by the detector can be used to pinpoint the location of the leak.
Helium mass spectrometer leak detectors are extremely sensitive and can detect leaks as small as 10^-12 to 10^-9 mbar·L/s (millibar-liter per second). They are commonly used in industries such as manufacturing, automotive, aerospace, HVAC, and refrigeration to test the integrity of components, systems, or devices that need to be leak-free.
It’s worth noting that helium mass spectrometer leak detectors require the use of helium gas, which can be expensive and non-renewable. Therefore, it’s important to use helium efficiently and responsibly during leak detection processes.
